Home » Products » Asbestos & Abrasives » Asbestos & Abrasives

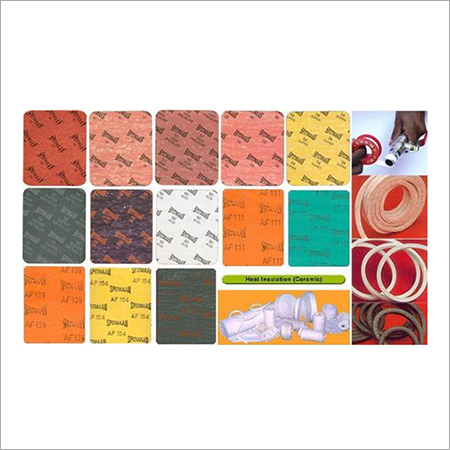

Asbestos & Abrasives

Asbestos & Abrasives
Asbestos & Abrasives
Product Code : 02
Product Description


Champion
Style 11
Specification Compliance
IS-2712 - 1998 Grade W / 3
IS 2712 - 1971 Grade C
Compressed Asbestos Fibre Jointing is a consistently uniform, solid run constructed and resilient product, a price worthy quality of dependable performance. Its adaptability to many sealing requirement makes this jointing the most Economical sheet packing choice of plant Engineers and maintenance men for low service conditions.
Red or Graphite finish.
Specially developed for general purpose applications for use against low pressure steam, water gases and alkalies.
Recommended Max Temperature
360oC
Recommended Max Pressure Kg./cm2
25 bars




Champion
Style 20
Specification Compliance
IS-2712 - 1998
IS-2712 - 1979 Grade W / 3
IS 2712 - 1971 Grade C
Compressed fibre jointing is a consistently uniform pliable and resilient product. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this 'STEAM JOINTING' the most popular choice sheet packing of plant engineers and maintenance men.
Red and Graphite finish.
Metallic and Non-Metallic in both finishes.
Developed for general purpose applications and this quality is applicable to a wide range of duties with less severe working conditions of temperature and pressure.
Recommended Max Temperature
380oC
Recommended Max Pressure Kg./cm2
35 Kg / cm2




Champion
Style 51 High Pressure
Specification Compliance
IS-2712 - 1998
IS-2712 - 1979 Grade W / 2
IS 2712 - 1971 Grade B / S
BS 2815 - 1973 Grade B
Manufactured from selected Asbestos Fibre and bonded with high grade binder compound, this product has a wide range of applications in the industrial field.
Brown / Grey or Graphite finish.
Metallic & Non-Metallic in both finished.
Recommended against steam, neutral non flammable gases, dyes alkalies, fats, oils, alcohols, motor fuels and such other engineering services, which do not warrant the use of as High Grade material such as CHAMPION Style 54 super.
Recommended Max Temperature
440oC
Recommended Max Pressure Kg./cm2
80 Kg / cm2





Champion
Style 39 Red/ Grey
Specification Compliance
IS-2712 - 1998
IS-2712 - 1979 Grade O / 2
IS 2712 - 1979 Grade W / 2
IS 2712 - 1971 Grade B / S
BS 2815 - 1973 Grade B
Manufactured from quality of Asbestos Fibre and vulcanized with special rubber compound to meet with the exacting requirements of modern industry.
Recommended for use against dry and wet steam, water, gases, alkalies, oil at normal temperatures, chemicals fuels,etc. and general engineering.
CHAMPION Style 39 can also be provided with wire gauze insertion and graphite finish.
Recommended Max Temperature
440oC
Recommended Max Pressure Kg./cm2
80 Kg / cm2




Champion
Style 54 Super
Specification Compliance
IS-2712 - 1998
IS-2712 - 1979 Grade W / 1
IS 2712 - 1971 Grade A / S
IBS 2815 - 1973 Grade A
Manufactured from excellent quality of Chrysotile Asbestos Fibre and raw materials, the blend being intimately mixed with heat resisting rubber compounds under special process to ensure maximum stability against high pressure and temperatures.
Though primarily a super heated steam jointing it is also recommended against saturated steam, oxygen, petroleum distillates, oils and fats, fuels, internal combustion engines, hydrocarbons, alcohols, solvent, dyes, etc. It is popularly used in MARINE ENGINES, electricity generating sets etc.
Recommended Max Temperature
550oC
Recommended Max Pressure Kg./cm2
150 Kg / cm2




Champion
Style 54 Super Metallic
Specification Compliance
IS-2712 - 1979 Grade W / 1
IS 2712 - 1971 Grade A / S
IBS 2815 - 1973 Grade A
A compressed Asbestos fibre jointing embedded with a strong reinforcement of steel wire gauze, The super metallic sheet is superior in performance over other forms of jointing sheets where severe physical conditions of high pressure and temperature have to be resisted. It is effectively used under rapidly changing operating conditions of pressure, were vibrations are experienced and where the flange of gasket joint is narrow.
Used in diesel exhaust manifold, cylinder head gaskets, internal combustion engines, air compressors.
Recommended Max Temperature
600oC
Recommended Max Pressure Kg./cm2
160 Kg / cm2




Champion
Style 59 Oil
Specification Compliance
IS-2712 - 1998
IS-2712 - 1979 Grade O / 1
IS 2712 - 1971 Grade A / O
British BS 1832 - 1972
A compressed fibre jointing bonded with a sophisticated compound. This is specialized jointing to withstand the most exacting demands of oil and petrochemicals plants, solvents, refrigerators, oils, etc.
Used in pipelines and apparatus of petrochemical fields, petroleum distillates, oil and petroleum industries. It is also recommended in industrial processes with high contents of aromatic substances, sulphurous compounds, chloric hydrocarbons, phenols, refrigerants, etc. The jointings give satisfactory services against steam also.
Recommended Max Temperature
550oC
Recommended Max Pressure Kg./cm2
150 Kg / cm2




Champion
Style 60 Acid
Specification Compliance
IS-2712 - 1998
IS-2712 - 1979 Grade A / 1
This is a specialized asbestos fibre jointing sheet which is intimately bonded with an acid resisting compound to withstand the corrosive action of acids and chemicals.
Recommended for use against hot concentrated organic, inorganic and mineral acids including hydrochloric, sulphuric (oleum) and nitric acids, under service conditions of temperature and pressure commonly encountered in chemical industries.
Recommended Max Temperature
210oC
Recommended Max Pressure Kg./cm2
150 Kg / cm2







Champion
Style AF 110
Max. Operating Pressure in Bar

25

Max. Short term
service temp.
400oC
Max. Continuous
service temp.
250oC
Max. Operation
temp. for steam
180oC
General purpose gasketing material suitable for use with Oils, Solvent, Gases, Water, L.P.Steam and most dilute acids and alkalies (low service conditions)

A cost effective product manufactured from ecofriendly natural cellulosic fibres bonded with suitable mix of elastomers.
Colour: Red & Green




Champion
Style AF 120
Max. Operating Pressure in Bar
35
Max. Short term
service temp.
400oC
Max. Continuous
service temp.
250oC
Max. Operation
temp. for steam
180oC
Suitable for use with gases, water, low pressure steam and dilute acids and alkalies.
Available with wire gauze insertion.
Also available with anti-stick coating or graphite coating.





Champion
Style AF 139
Max. Operating Pressure in Bar

80

Max. Short term
service temp.
400oC
Max. Continuous
service temp.
250oC
Max. Operation
temp. for steam
200oC
General purpose for oils, solvents, water, steam, gases, dilute acids and alkalies, glycols and aqueous solution.
Available with wire gauze insertion.
Also available with anti-stick coating or graphite coating.




Champion
Style AF 154
Max. Operating Pressure in Bar

150

Max. Short term
service temp.
450oC
Max. Continuous
service temp.
250oC
Max. Operation
temp. for steam
250oC

For use with oils, solvents, gases, steam, acid and alkalies.

Excellent tensile strength

Outstanding gas sealability
High resistance to creep under elevated temperatures & pressure.
Available with wire gauze insertion.
Also available with anti-stick coating or graphite coating.




Champion
Style AF 159
Max. Operating Pressure in Bar

150

Max. Short term
service temp.
450oC
Max. Continuous
service temp.
250oC
Max. Operation
temp. for steam
200oC
High resistance to hot oils, fuels, hydrocarbons and refrigerants.
Good steam resistance. Excellent creep resistance.
Very low gas permeability.
Available with wire gauze insertion.
Also available with anti-stick coating or graphite coating.




Champion
Style AF 160
Max. Operating Pressure in Bar

150

Max. Short term
service temp.
250oC
Max. Continuous
service temp.
210oC
Max. Operation
temp. for steam
210oC
Acid resistant grade.
Recommended for use against hot concentrated organic, inorganic and mineral acids.
Also available with anti-stick coating or graphite coating.





Sizes : 3 MM to 5 MM in 10 metre spools.
6mm & above in boxes / Kg.


Champion
Style 1


A PURE PTFE yarn packing with no additive or lubricants.The Packing is resilient, with low coefficient of friction, dimensional stability, with minimum frictional heat.
The packing is chemically inert. It is recommended for oxygen service and oxidizing media, for pumps and valves, mixers, agitators, concentrated acids, alkalies, aggressive vapors and gases.It can also be used in food industry.
Not to be used on molten alkali metals & fluorine
Temperature
-200°C to +280°C
Pressure
Up to 400 Bar
pH
0 to 14




Champion
Style 2


The packing is manufactured from PURE PTFE yarn impregnated with PTFE dispersion by a special process.The packing has dimensional stability, high compressibility and low coefficient of friction.
For valve, reciprocating rods, centrifugal pumps, mixers, corrosive gases, acids and alkalies, ammonia, solvents, hydrocarbons, food stuff and pharmaceutical industries.
Not to be used against fluorine & alkali metals
Temperature
-210°C to +280°C
Pressure
Max Up to 500 Bar
pH
0 to 14





Champion
Style 3


This universal pump packing is manufactured from PTFE IMPREGNATED YARN, treated with high temperature resisting lubricant. The packing has compressibility, flexibility, dimensional stability & low coefficient of friction.Fluids can be sealed with minimum off gland pressure and heat build up.
A reliable packing for valves, agitators, rotary and reciprocating pumps in highly aggressive chemicals, corrosive liquids, concentrated acids, alkalies, oils, solvents, gases, pharmaceuticals, and foodstuff industries.
Not to be used against fluorine & alkali metals
Temperature
-200°C to +280°C
Pressure
Upto 350 Bar
pH
0 to 14




Champion
Style 36


This versatile high performance packing is plaited from GRAPHITE FILLED PTFE YARN. Due to this unique combination this packing has high thermal conductivity, low coefficient of thermal expansion, lubricity, low friction, minimum shaft wear and universal chemical resistance.The packing is non hardening.
For centrifugal, rotary pumps, agitators, mixers and low pressure valves, handling chemicals, caustics, acids, solvents, dyes, white & black liquor, oils, pulp and paper, abrasive materials etc.
Not recommended for fluorine, strong oxidizing agents, fuming nitric acid, oleum, aqua regia.
Temperature
-212°C to +280°C
Pressure
Up to 250 Bar
pH
0 to 14




Champion
Style 23


This packing,constructed from HIGH TENSILE STRENGTH PTFE YARN which incorporates high quality graphite particles for better heat transfer.The constituents impart improved thermal conductivity heat dissipation, lubricity, low thermal expansion and low coefficient of friction.
The packing is developed for high speed shafts in rotating,reciporocatory and static services, valve stems, slurry and high pressure applications against chemicals, acids and alkalies, oils, pulp and paper etc.
Not recommended for fluorine, molten alkali metals, fuming nitric acid, ammonium nitrate, oxygen, or strong oxidising agents.
Temperature
-250°C to +300°C
Pressure
Up to 350 Bar
pH
0 to 14




Champion
Style 38


A high purity carbon filament yarn packing having a good thermal conductivity, flexibility, resiliency, elasticity and low friction.
The packing is for high speed, high temperature and pressure applications in sealing boiler feed pumps, super heat steam, agitators, mixers, digester, crytallizers, solvents, oils,non oxidizing mineral acids and
alkalies. It is a good valve stem packing.
Not recommended for fluorine, nitric acid, aqua regia and strong oxidizers.
Temperature
-200°C to +600°C
Pressure
Upto 350 Bar
